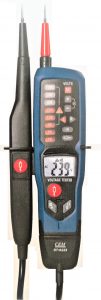

BIPOLAR VOLTAGE TESTER DT9233

Измерване 1000VAC/DC
Посока на въртене на полето
Тест ДТЗ (30 мА товар)
Измерване на съпротивление
Test circuit
Еднополюсен тест за фаза , работещ и с ръкавици.
4мм адаптери за върховете на сондите и захващане на сондите една за друга за тестване на Шуко.
LCD display
CATIII 1000V/ CATIV 600V

Features
	9230	9231	9232	9233
Complies with EN 61243-3:2014		*	*	*
LED Indication Range: 12 V to 600 V dc and ac	*			*
LED Indication Range: 12 V to 1000 V dc and ac		*	*	*
Independent ELV indicator LED, indicates if >50 V ac/120 V dc is present even in the event of no battery power or main circuit failure	*	*	*	*
LCD Indication Range: 6 V to 1000 V dc and ac			*	*
Resistance Measurement: LCD 3½ digit (0 to 1999 Ω/1Ω resolution)			*	*
LCD Backlight Display HOLD: Freeze/unfreeze display with voltage or resistance measurement			*	*
Fixed Impedance ~200 kΩ (≤3.5 mA @ 1000 V)		*	*	*
Switchable Load by 2 pushbuttons (30 mA @ 230 V)		*	*	*
Vibration During Load (when 2 switchable load pushbuttons are pushed)		*	*	*
Single-Pole Phase Test (also operates with gloves)		*	*	*
Rotary Field Direction (also operates with gloves)		*	*	*
Continuity Test / Diode Test		*	*	*
Fashlight		*	*	*
Beeper for Continuity/Phase/ACV	*	*	*	*
19 mm Probe Tip distance when docked	*	*	*	*
CAT III 1000 V / CAT IV 600 V	*	*	*	*
IP64		*	*	*

Specifications
		9230	9231	9232	9233
LEDs
Voltage range	12 V to 600 V ac/dc	*			*
Voltage range	12 V to 1000 V ac/dc		*	*	*
Resolution	±12V,24V,50V,120V,230V,400V,600V	*
Resolution	±12V,24V,50V,120V,230V,400V,690V,1000V		*	*	*
Frequency range	0/40Hz to 400 Hz	*	*	*	*
Response time	≤0.5 seconds	*	*	*	*
Auto power on	≥12V ac/dc	*	*	*	*
LCD
Voltage range	6V to 1000V ac/dc			*	*
Resolution	±1V			*	*
Tolerance	±(3%rdg + 5digits)			*	*
Frequency range	0/40Hz to 400 Hz			*	*
Response time	≤1 seconds			*	*
Auto power on	≥6V ac/dc			*	*
Voltage detection	Automatic		*	*	*
Polarity detection	Full range		*	*	*
Range detection	Automatic		*	*	*
Internal basic load impedance Peak current	Maximum 3.5mA at 1000 V 200 kΩ/1s<3.5mA(no RCD tripping)	*	*	*	*
Operation time	Duration Time = 30 seconds	*	*	*	*
Recovery time	Recovery Time =240 seconds	*	*	*	*
Switchable Load	﹣7 kΩ	*	*	*	*
Peak current	Is(load) = 150mA		*	*	*
RCD triping	I = 30mA @ 230V		*	*	*
Continuity Test	0 to 400kΩ	*	*	*	*
Accuracy	nominal resistance ﹢50%	*	*	*	*
Test current	≤5 μ A	*	*	*	*
Single-pole Phase Test	100V ac to 1000V ac		*	*	*
Frequency range	40 Hz to 60Hz		*
Frequency range	50Hz to 400Hz			*	*
Rotary Field Indication			*	*	*
Voltage range(LEDs)	100V to 1000V(phase to earth)		*	*	*
Frequency range	50 Hz to 60Hz		*	*	*
Resistance Measurement	0Ω to 1999Ω			*	*
Resolution	1Oh			*	*
Tolerance	±(5%rdg + 10 digits) @ 20℃			*	*
Temperature coefficient	±5 digits/10K			*	*
Test current	≤30μA
