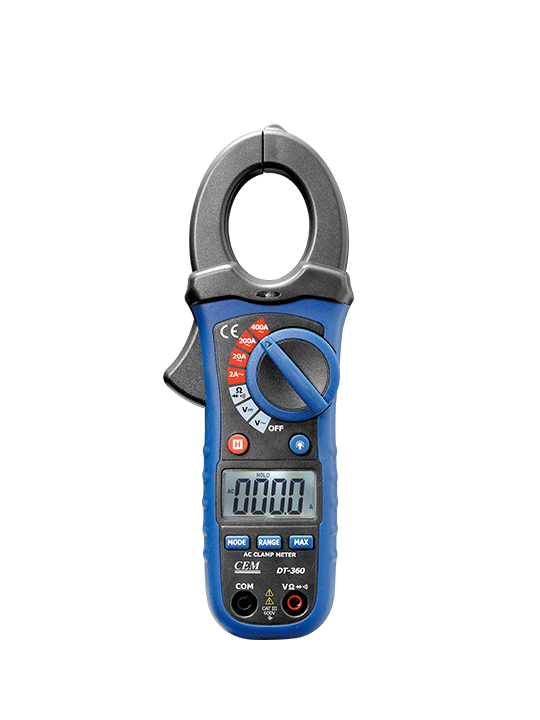

Compact Ampere Clamps DT360 and DT363

Compact Ampere Clamps DT360 and DT363

Compact Ampere Clamps DT360 and DT363

Information

Function DT-360 DT-363
Current measurement AC AC/DC
Resolution 1mA 10mA
LCD display counts 2000 4000
AC True RMS *
Backlight * *
Data Hold * *
Max Hold *
Zero Function *
Auto Power Off * *
Low battery indication * *
Peak Current *
1.2” (30mm) opening of the jaws * *

characteristics

Specification
Function Max. scope Accuracy DT-360 DT-363
Voltage DC 600V ±(0.5%+1d) * *
Voltage AC 600V ±(1.5%+2d) * *
The current is DC 400A ±(2.0%+5d) *
Current AC 400A ±(2.5%+4d) * *
Resistance 40MΩ ±(3.0%+5d) 20MΩ *
Temperature 1000ºC/ 1832ºF ±(3.0%+3d) *
Capacity 100uF ±(2.5%+5d) 40mF
Frequency 10MHz ±(1.2%+2d) *
Test circuit Buzzer sounds at 50Ω * *
Diode test Test current 0.3mA * *
