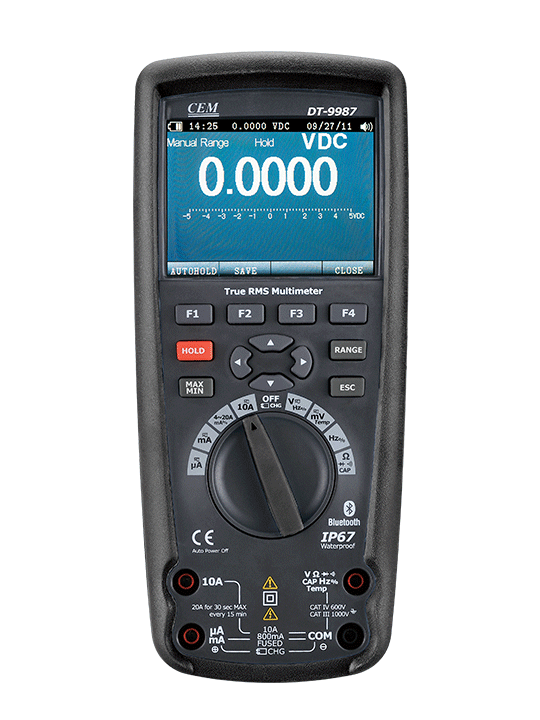

Multimeter DT-9987
Professional True RMS industrial multimeter DT-9987 with TFT LCD display
The 9987 Professional True RMS Industrial Digital Multimeter with TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture feactures. It can trace any interrupted problems of the equipments and watch on without person. It is easy to find and solve the problems of the production equipments, providing Bluetooth technology and memory the datasheets. It is much safer measurements with double molded plastic housing design and IP67 waterproof.
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V & 0.8A/1000V fuses protection on current ranges
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V & 0.8A/1000V fuses protection on current ranges
| Specifications | DT-9987 | ||
| Function | Maximum | Max, resolution | Accuracy |
| Voltage DC | 1000V | 1μV | ±(0.025% + 5) |
| Voltage AC | 1000V | 1μV | ±(0.4% + 40) |
| Voltage DC | 10A | 0.01μA | ±(0.15% + 2) |
| Voltage AC | 10A | 0.01μA | ±(0.6% + 5) |
| Temperature | -50ºC to 1000ºC | 0.1ºC | ±(1.0% + 2.5ºC) |
| Resistance | 50MΩ | 0.01Oh | ±(0.05% + 2) |
| Capacitance | 10mF | 0.001nF | ±(1.0% + 5) |
| Frequency | 10MHz | 0.01Hz | ±(0.005% + 1) |
| Diode and Continuity | Yes | ||
| PC Interface | Bluetooth | ||
| Power Supply | 6 hours Li-ion rechargeable battery; AC Adaptor/charger | ||
