Multimeter DT965 T
TRUE RMS Industrial Multimeter DT965 T

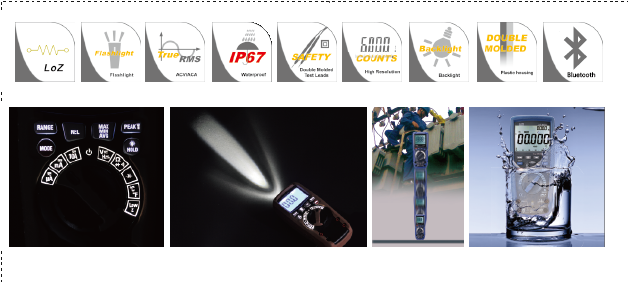

- Automatic illumination of the buttons and the rotary switch for selecting a position
- Built-in powerful LED illuminator
- Bleutooth 4.0 for connection with android devices(model BT)
- TrueRMS measurement
- ACV, DCV measurement and low impedance mode (Lo Z) to eliminate the "ghost voltages" effect
- 3 5/6 (6000) LCD display
- Measurement of relative values
- 61 segments, bargraph analogues
- Data-Hold, Min, Max, Peak и Duty Cycle (Hz / %)
- Circuit and diode test
- Degree of protection IP67
- Reinforced rubberized double molded case
- Run-out test – 2m
- Safety compliance
- EN61010-1 CAT IV 600V, CAT III 1000V
- 1000V input protection for all ranges
- 10A / 1000V & 0.8A / 1000V current range fuses
Technical information
Function scopes accuracy 965T/VT
DC Voltage(V) 600mV/6V/60V/600V/1000V ±(0.5%+1) / ±(0.1%+2)
AC Voltage(V) 600mV/6V/60V/600V/1000V ±(1.0%+3) / ±(0.8%+10)
DC current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(1.0%+3) / ±(0.5%+10)
AC Current (A) 600μA/6000μA/60mA/600mA/6A/10A ±(1.2%+3) /±(0.8%+3)
Resistance. (Oh) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(1.2%+5) / ±(0.8%+10)
Capacity (F) 60nF/600nF/6μF/60μF/600μF/6000μF ±(3.0%+5) /±(3.0%+10)
Frequency (Hz) 10Hz-10KHz ±(0.1%+5) ±(0.1%+5) /±(0.01%+5)
Pace (ºC) -20ºC~760ºC ±(1.2%+3ºC)/±(1.0%+3ºC)
Diode test yes
Верига да
Bluetooth 965Т- не /965ВТ – да
Dimensions (HxWxD): 170mm x 74mm x 45mm
Weight: 218g
