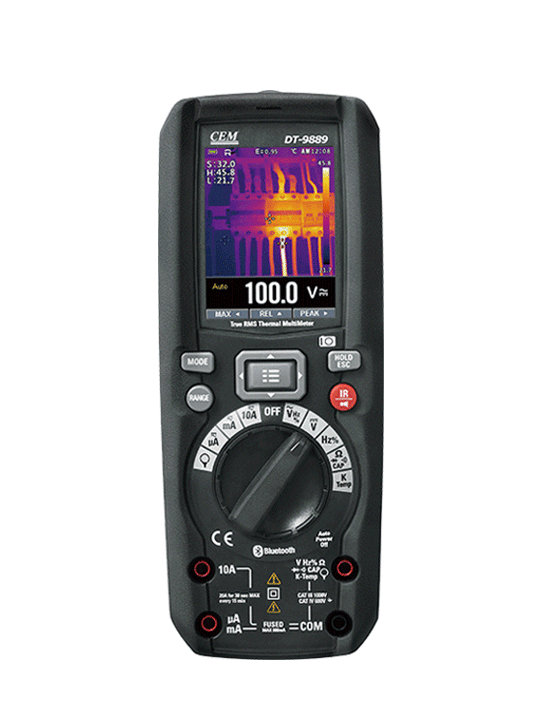

Multimeter with built-in IR camera DT-9889
DT-9889
2 V 1 thermal camera and multimeter
9889 Professional industrial digital multimeter with built-in thermal imaging camera, providing fast A/D conversion, high accuracy, with data logging features and an advanced system platform, which enables intelligent multi-functions such as online software update, calibration by computer etc. Meterbox iMM software and cloud server support to transfer the metered data to the customer's smartphone for editing and storage.
Safety compliance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V and 0.8A/1000V fuses
| Features |
| Built-in Thermal Imager design quickly identifies hot spots without contact |
| 240 x 320 2.8” TFT color LCD display |
| Large LCD display 6000 counts |
| Logging function with Trend Capture for easy review of logged data |
| Low pass filter for accurate measurement of variable frequency drive (VFD) signals |
| Long work time with li-ion battery |
| AC, AC+DC true-RMS measurements & 1kHz ACV, ACA bandwidth |
| A/D convert fast sampling time: 10 Times/sec. |
| Peak capture (records transients as fast as 500μs) |
| Min/Max/Average with Time stamp (records signal fluctuations) |
| 80×80 Infrared resolution |
| Bluetooth BLE instant share function |
| Easy to view and analyze images quickly |
| Specifications | |||
| Thermal Imager | |||
| IR Resolution | 80×80 pixels | ||
| Field of view(FOV) | 21° x 21° | ||
| Thermal sensitivity/NETD | < 0.08°C /80mK | ||
| Image frequency | 50Hz | ||
| Object temperature range | range: –20 to 260°C (–4 to 500°F) | ||
| Spectral range | 8–14 μm | ||
| Color palettes | IRON/Rainbow/Grey/Grey Inverted | ||
| Accuracy | ±2°C (±3.6°F) or ±2% of reading | ||
| True RMS Multimeter Functions | |||
| Function | Maximum | Max, resolution | Accuracy |
| Voltage DC | 1000V | 100mV | ±(0.1%+3) |
| Voltage AC | 1000V | 100mV | ±(0.9%+20) |
| Current DC | 10A | 0.1μA | ±(0.9%+2) |
| Current AC | 10A | 0.1μA | ±(1.2%+5) |
| Resistance | 60MΩ | 0.1Oh | ±(1.0%+2) |
| Capacitance | 6000μF | 0.01nF | ±(2.5%+5) |
| Frequency | 10MHz | 0.01Hz | ±(0.5%+1) |
| Diode and Continuity | Yes | ||
| PC Interface | Bluetooth | ||
| Power Supply | 8 hours Li-ion rechargeable battery; AC Adaptor/charger | ||
