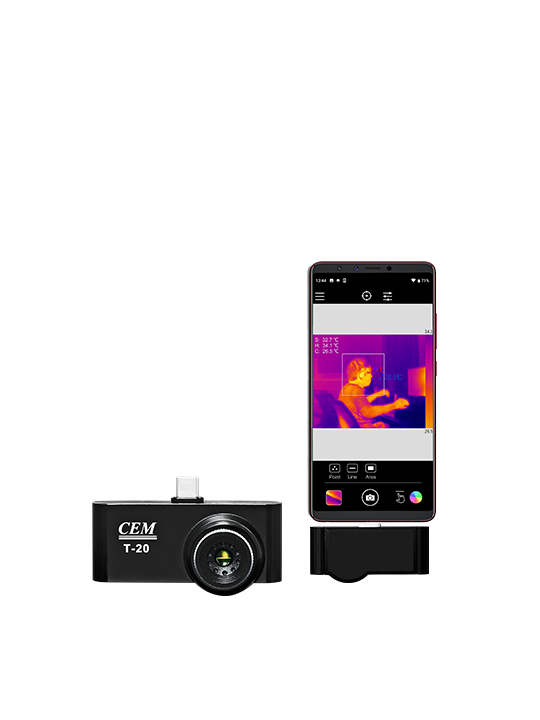

THERMAL CAMERA FOR MOBILE PHONE T-10 / T-20
The smart thermal camera can be used to connect to Android smartphones with USB-C or Micro-USB. It does not need an additional battery, memory or display. It only needs to be connected to the smartphone via USB interface , using the free Smart Thermview app, turns the phone into a fully functional thermal imaging camera with recording capability, analyzing, report generation and sharing all from the same device. With the combination of the T-10 and the Smart Thermview app, all stand-alone thermal imager operations can be performed right from your smartphone with live analysis options, changing color palettes, generate PDF reports, performing a full analysis of saved thermal images and then sharing them all. right from your smartphone, which changes it.
Resolution 206×156 (T10) / 320×240 (T20)
Viewing angle 36g
Frequency 9Hz
-10 .… 330 C
Range – 330m / 543m
Photo and video recording
Monitoring of highest and lowest temperature
Set a threshold
9 color palettes
Автоматично настройване на емисивността
| maging & Optical | |
| Thermal Resolution | 206 x 156px |
| Wavelength | 8 ~ 14μm |
| Frame Rate | 9Hz |
| Field of View (Horizontal x Vertical) | 35.4° X 26.8° |
| Shutter | Automatic |
| Focus Mode | Manual |
| Minimum Focus Distance | 0.5m, Max 1m |
| Detection Range | 330m |
| Recognition Range | 83m |
| Identification Range | 48m |
| Measurement | |
| Temperature Measurement Range | -10°C ~ 330°C |
| Repeatability / Accuracy (-10~100°C) | ±2°C / ±5°C |
| Repeatability / Accuracy (100~330°C) | ±2% / ±5% |
| Thermal Sensitivity/NETD | @f/1.0 Typical 50mk Max 70 mk |
| @f/1.2 Typical 70mk Max 100mk | |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature (Non-Condensing) | -40°C ~ 85°C |
| Mechanical Shock | Drop from 2m |
| Common Features | |
| Weight | 54g |
| Dimensions (WxHxD) | 68 x 33 x 28 mm |
| Phone | Android |
| Connections | USB-C (Android) Micro-USB (Android) |
| App Features | |
| Colour Pallet | 9 Options |
| Capture Mode | Photo, Video |
| File Format | HIR, Mp4 |
| Spot | Center Spot |
| Automatic Hot/Cold Detection | Auto Hot/Cold Markers |
| Temperature Analysis | User Defined Points, Lines and Areas |
| Report | PDF report export and Share |
