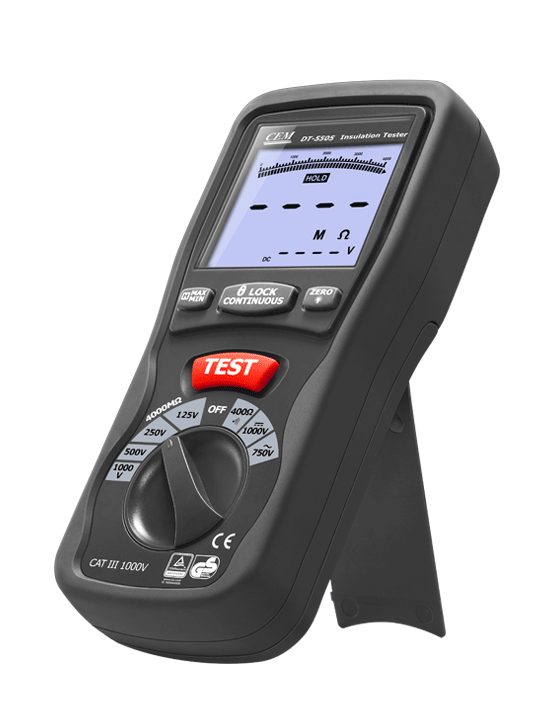

Insulation tester 1kV (meger , mega ohmmeter)- CEM DT5505
Insulation tester 1kV (meger , mega ohmmeter)- CEM DT5505
- Handheld megohm meter with batteries
- Test voltages 125V/250V/500V/1000V
- Insulation resistance range up to 4000MΩ
- Visualization of battery voltage and test result
- Continuous test in “HANDS FREE” mode
- Low Resistance measurement
- AC/DC V measurement
- Test circuit
- Data Hold function
- Golyam LCD display with backlight and analogue bargraph
| Display | Golyam LCD display with backlight and analogue bargraph |
| Refresh rate | 2.5 times per second |
| Reset | Automatically |
| Incision out of range | number 1 at the senior level |
| Operating temperature | 0 ºC to 40ºC (32ºF to 104ºF) and Humidity below 80% RH |
| Storage temperature | -10 ºC to 60ºC (14ºF to 140ºF) and Humidity below 70% RH |
| Power supply | 1.5 V “AA” size Battery x 6 |
| Dimensions | 200(L) x 92(W) x 50(H) mm |
| Weight | About 582g |
