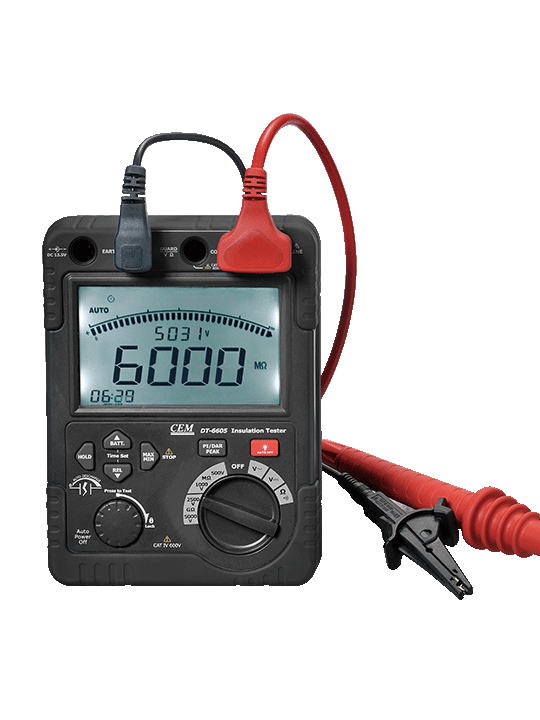

Insulation tester 5kV(meger , mega ohmmeter) -CEM DT6605

Test voltages 500V, 1000V, 2500V, and 5000V
Insulation resistance measurement up to 60G
Big 6000 discharged LCD display with backlight and analogue bargraph
Polarization index measurement (PI)
Dielectric Absorption Ratio (BUT)
Measurement AC/DC V to 600V with Max/Min, Peak and Relative functions
1 to 15 minute timer for IR measurement
Resistance measurement
Automatic ranges
Indication of output voltage and discharge voltage
Automatic discharge function and output voltage alarm function
- Automatic shutdown and battery test
- Test conductors, 8 x C bateria, AC adapter and durable storage case

Rated voltage	500V	1000V	2500V	5000V
Measuring range	0.005~6,000MΩ	0.005~6,000MΩ	0.05~60.00MΩ	0.05~60.00MΩ
(Auto-ranging)	6.01~60.00MΩ	6.01~60.00MΩ	60.1~600.0MΩ	60.1~600.0MΩ
	60.1~600.0MΩ	60.1~600.0MΩ	0.61~6.00GΩ	0.61~6.00GΩ
	0.61~6.00GΩ	0.61~6.00GΩ	6.1~60.0GΩ	6.1~60.0GΩ
Open circuit voltage	DC 500V	DC 1000V	DC 2500V	DC 5000V
Open circuit voltage	+20%,-0%	+20%,-0%	+20%,-0%	+20%,-0%
Rated current	1~1.2mA	1~1.2mA	1~1.2mA	1~1.2mA
Rated current	(at 0.5 MΩ load)	(at 1 MΩ load)	(at 2.5 MΩ load)	(at 5 MΩ load, Recommended use of the Power Adaptor)
Short-circuit current	Approx.1mA
Accuracy	+2.5%reading+15digits (at 0.005~600.0MΩ);
	+3%reading+15digits (at 0.61~6.00GΩ);
	+4%reading+15digits (at 6.1~60.0GΩ);
Voltage monitor range	5~600VDC (resolution 1V); Accuracy: +1.5%reading+5digits
