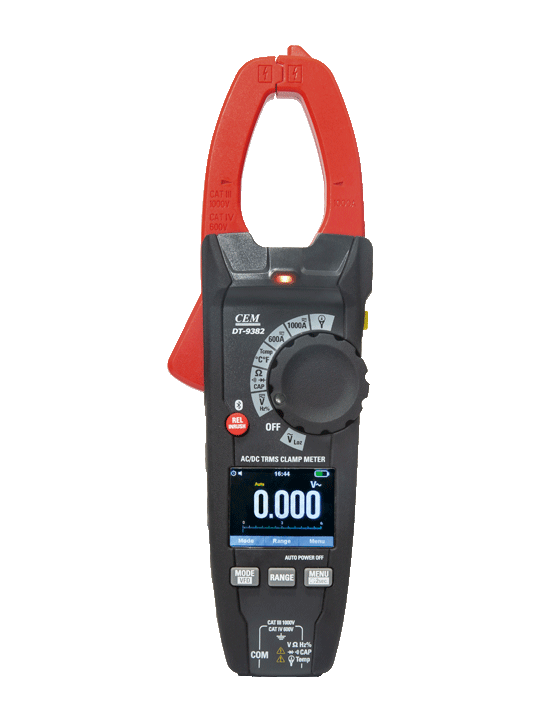

TRUE RMS AC/DC Clamp Meters DT 9382
Professional 1000A AC, AC/DC True RMS Clamp Meters with TFT color LCD display
The 9380/9381/9382/9383 series clamp meters provide fast A/D converting sampling time,
high accuracy, built-in datalogging offer all needed features for measurement. It is with modern
bodies and jaws design for perfect handheld and tight place testing. A large backlit display (on most
models) is easy to see and a handy data hold keeps measurements on the display.
▪ Double molded plastic housing
▪ True RMS measurement for ACV & ACA
▪ Flexible current probe expands the measurement range to 3000 ACA (9383)
The 9380/9381/9382/9383 series clamp meters provide fast A/D converting sampling time,
high accuracy, built-in datalogging offer all needed features for measurement. It is with modern
bodies and jaws design for perfect handheld and tight place testing. A large backlit display (on most
models) is easy to see and a handy data hold keeps measurements on the display.
▪ Double molded plastic housing
▪ True RMS measurement for ACV & ACA
▪ Flexible current probe expands the measurement range to 3000 ACA (9383)
Features
9382
Current measurement
AC/DC
Display counts
6000
1.8’’TFT color LCD display counts
AC True RMS
10kHz bandwidth (voltage/current)
Data Hold & Peak Hold
Max /Min Hold
REL (Zero) Function
Flashlight and Backlight
Flashlight
Auto Power Off
Low battery indication
100ms Inrush current
Low input impedance prevents false readings due to “ghost voltage” (LoZ)
Low pass filter for accurate measurement of variable frequency drive (VFD) signals
1.9” (48mm) Jaw opening
Bluetooth interface
3000A ACA flexible clamp
Trend capture function
Fast response time
10 times/sec.
100 Graph Data review
NCV Function
| Specifications | |||||||
| Function | Max Range | Basic Accuracy | 9380 | 9380A | 9381 | 9381A | 9382 |
| Voltage DC | 1000V | ±(0.5%+2d) | * | * | * | * | * |
| Voltage AC | 1000V | ±(1.0%+5d) | * | * | * | * | * |
| Current DC | 1000A | ±(2.0%+5d) | * | * | * | ||
| Current AC | 1000A | ±(2.5%+8d) | * | * | * | * | * |
| ACA flexible | 3000A | ±(2.5%+8d) | * | ||||
| Resistance | 60MΩ | ±(3.0%+5d) | 40MΩ | * | 40MΩ | * | * |
| Temperature | 1000ºC/
1832ºF |
±(1.0%+3d) | * | * | * | * | * |
| Capacitance | 100mF | ±(2.5%+5d) | * | * | * | * | * |
| Frequency | 10kHz | ±(0.5%+2d) | * | * | * | * | * |
| Inrush Current | 1000A | ±(2.5%+2d | * | * | * | ||
| Continuity check | Buzzer sounds at 50Ω | ||||||
| Diode test | Test current 0.3mA | ||||||
