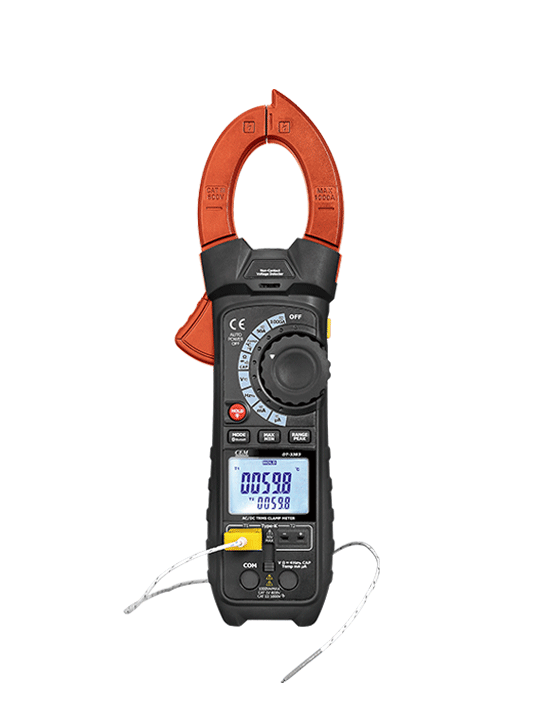

TRUE RMS AC/DC Амперклещи DT3373
TRUE RMS AC/DC Амперклещи DT3373
- 6000 LCD display
- AC/DC current measurement
- AC True RMS
- Built-in powerful LED flashlight
- Peak Hold
- Max/Min
- REL (Zero) Function
- Auto Power Off
- Low battery indicator
- Analogue bargraph/61 seg.
- 9“ (48mm) jaw size
- Non-contact voltage detector
- Measurement of inrush current
- Reinforced shock-resistant housing
| Specification | |||
| Function | Max. scope | Accuracy | DT-3373 |
| Voltage DC | 1000V | ±(0.5%+1d) | * |
| Voltage AC | 1000V | ±(1.5%+2d) | * |
| The current is DC | 1000A | ±(2.5%+5d) | * |
| Current AC | 1000A | ±(2.5%+4d) | * |
| Resistance | 60MΩ | ±(3.0%+5d) | * |
| Temperature | 1000ºC/ 1832ºF | ±(3.0%+3°C) | ±(1.0%+3°C) |
| Capacity | 10mF | ±(2.5%+5d) | 6000uF |
| Frequency | 10MHz | ±(1.2%+2d) | 10MHz |
| Test circuit | Buzzer sounds less than 50Ω | ||
| Diode test | Test current 0.3mA | ||
